    Coaxial Isolator 70 ~ 130MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

     RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0010016607075NK

    70 ~   75

    16

    1.45

    1.2

    N Female

    0 ~   +70

    5o0010016607585NK

    75 ~   85

    16

    1.45

    1.2

    N Female

    0 ~   +70

    5o0010016607696NK

    76 ~   96

    16

    1.45

    1.2

    N Female

    0 ~   +70

    5o0010016608090NK

    80 ~   90

    16

    1.45

    0.8

    N Female

    0 ~   +70

    5o00100166088108NK

    88 ~   108

    16

    1.45

    1

    N Female

    0 ~   +70

    5o001001660110130NK

    110   ~ 130

    17

    1.4

    0.8

    N Female

    0 ~   +70

     Basic Specifications

    Dimension

    100*166*40mm

    Forward Power

    500W

    Reverse Power

    250W

    Connector Type

    N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

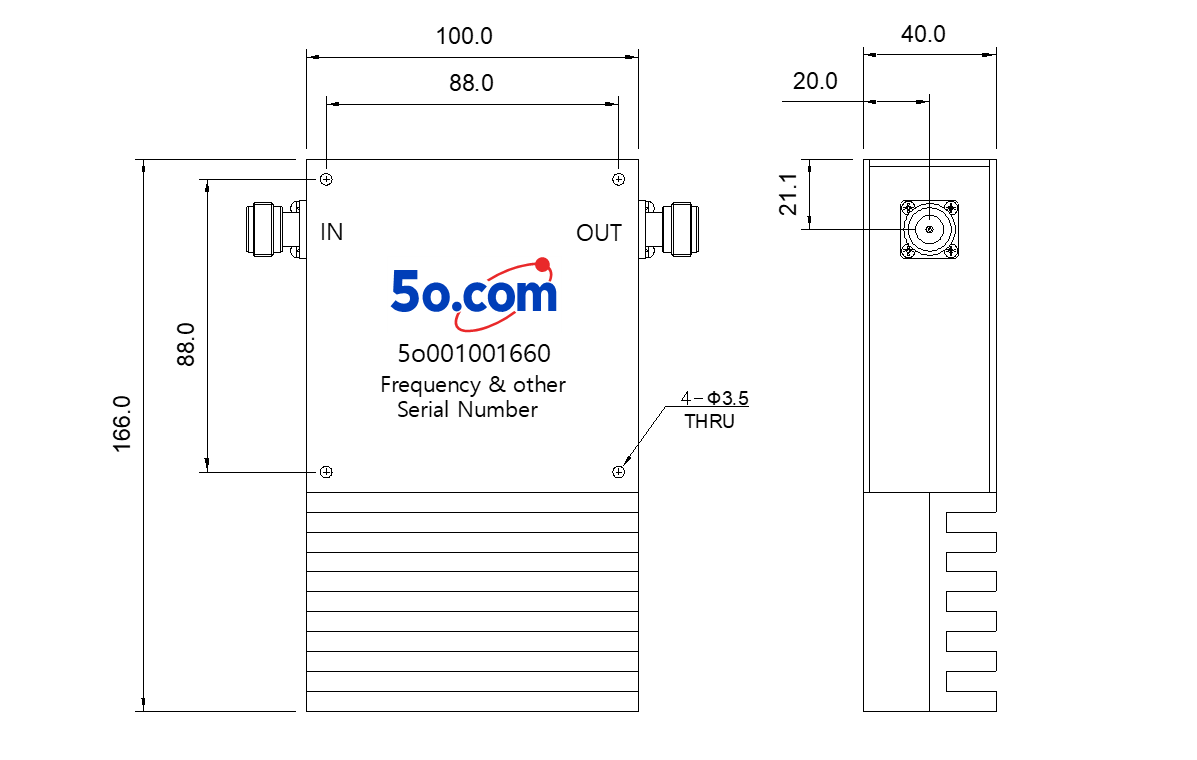

     Overall Dimension(mm)




    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
